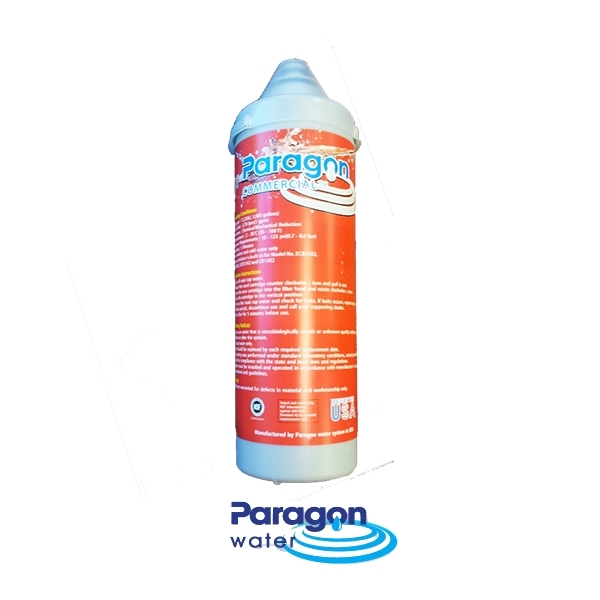

Paragon Commercial Water Filter ECB5SR2 / EV961836 / 2CB-GW

Paragon Commercial ™

Description : Commercial Water Filter

Model No. : ECB5SR2

(COMPATIBLE WITH EVERPURE 2CB-GW / EV961836)

Operating Conditions

• Capacity : 11,350L (3,000 gallons)
• Flow Rate : 3.78 lpm (1 gpm)
• Functions : Chemical/Mechanical Reduction
• Temperature : 2 – 38 °C (35 – 100 °F)
• Pressure Requirements : 10- 125 psi(0.7 – 8.6 bar)
• Flushing : 5 Minutes
• For ambient and cold water only
• Scale inhibitor is built-in for Model No. ECB5SR2, CB5SR2, ECB1SR2 and CB1SR2

Installation Instructions

1. Turn off main tap water.
2. Rotate the used cartridge counter clockwise ½ turn and pull it out.
3. Insert the new cartridge into the filter head and rotate clockwise ½ turn.
4. Place the cartridge to the vertical position.
5. Turn on the main tap water and check for leaks. If leaks occurs repeat step 1.2.3.4.

If leaks persist, discontinue use and call your supporting dealer.

1. Flush filter for 5 minutes before use.

Operating Notices

• Do not use water that is microbiologically unsafe or unknown quality without adequate disinfection before or after the system.
• For cold water only.
• Filter should be replaced by each required replacement date.
• The testing was performed under standard laboratory conditions, actual performance may vary.
• Check for compliance with the state and local laws and regulations.
• System must be installed and operated in accordance with manufacturer’s recommended procedures and guidelines.

Warranty

Filters are warranted for defects in material and workmanship only.

      COMPONENT

Tested and certified by  NSF International against NSF/ANSI Standard 42 for material requirements only.

Manufactured by Paragon Water System in USA
