Electrolux / Westinghouse

1450970 External Filter Hose Kit

This is a  Westinghouse, Frigidaire, Electrolux 1450970

REPLACEMENT  FILTER  240396407, 1438545,1458682

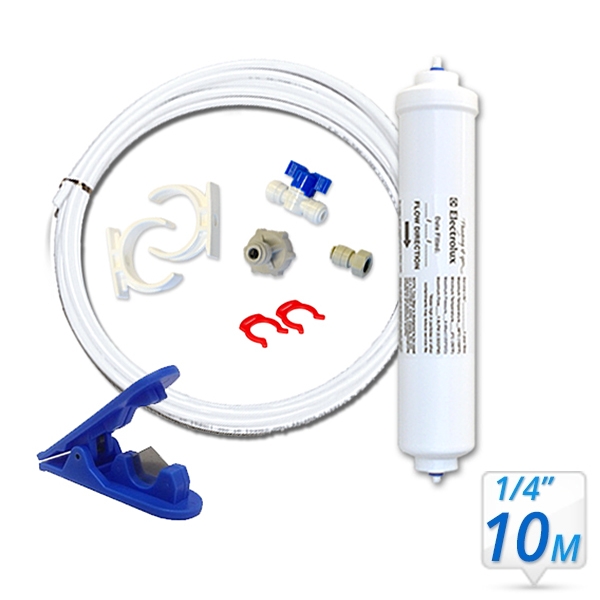

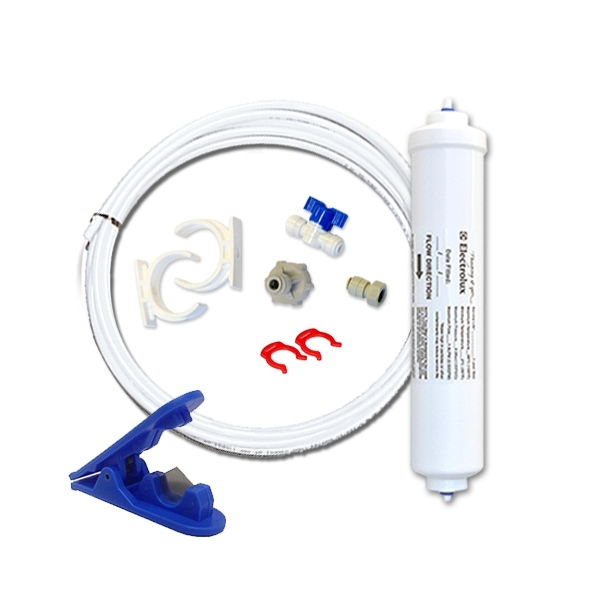

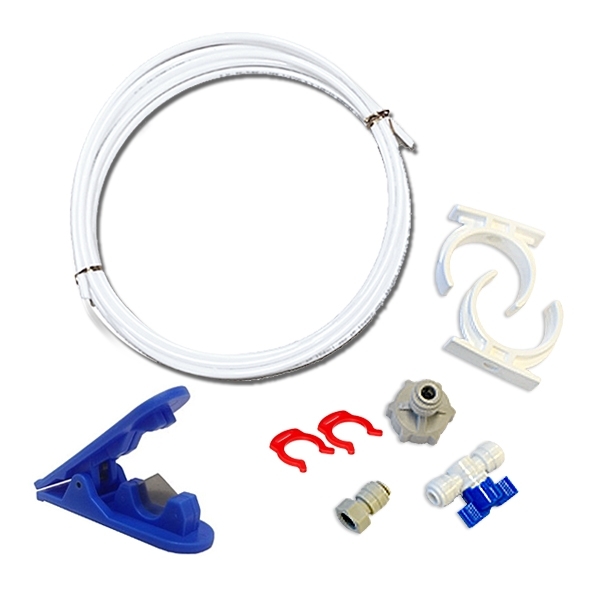

THIS KIT SET PACKING INCLUDES:

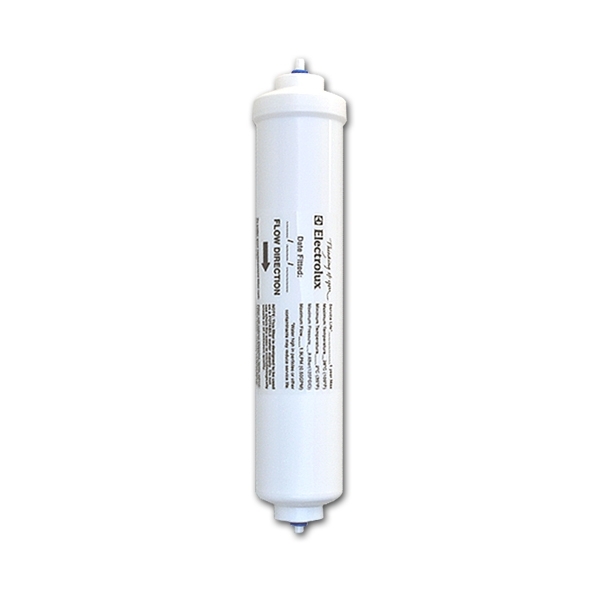

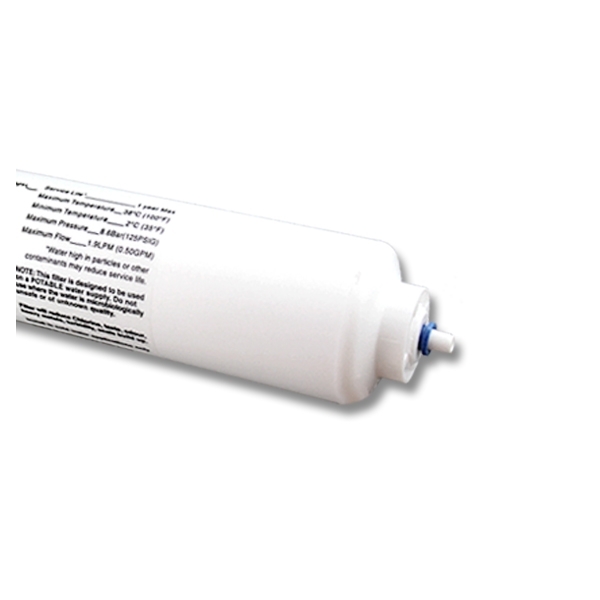

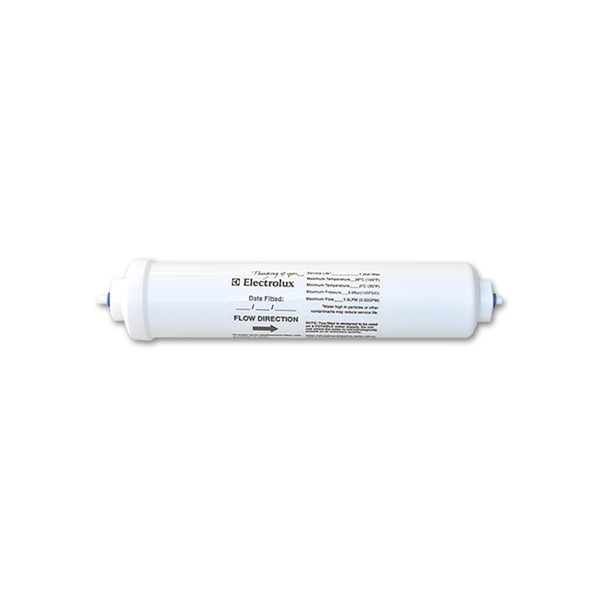

- GENUINE ELECTROLUX/WESTINGHOUSE EXTERNAL FILTER 1450970
- NYLON TUBE CUTTER FOR MAXIMUM TUBE OUTER DIAMETER 15MM

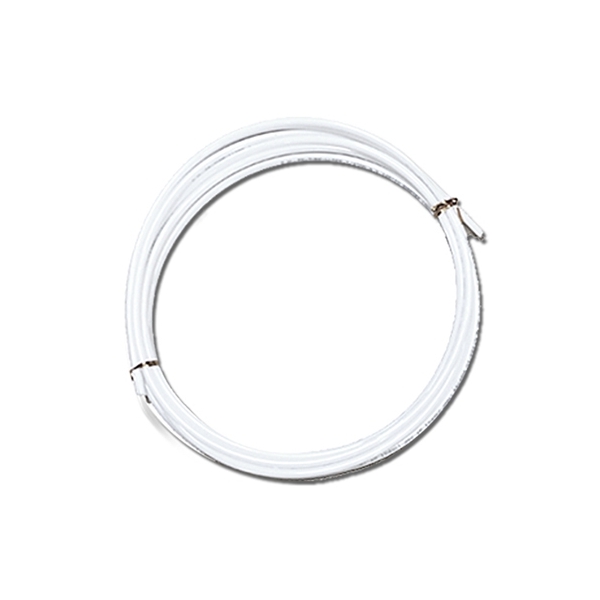

- 1X 1/4" 10 METRE HOSE

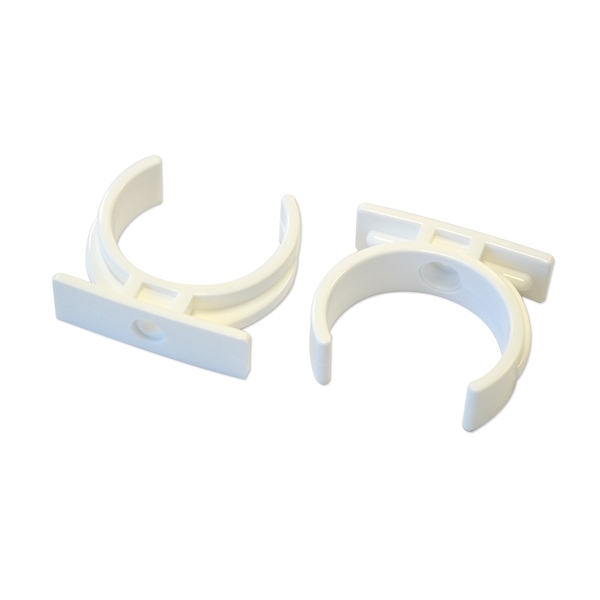

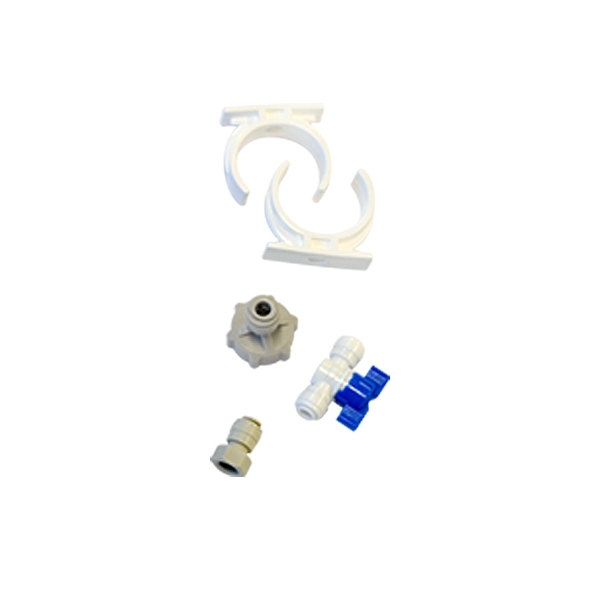

- 2X INLINE FILTER BRACKET
- 1X 1/4" FEMALE CONNECTOR TO 1/4" PUSH IN(BACK OF FRIDGE CONNECTION)

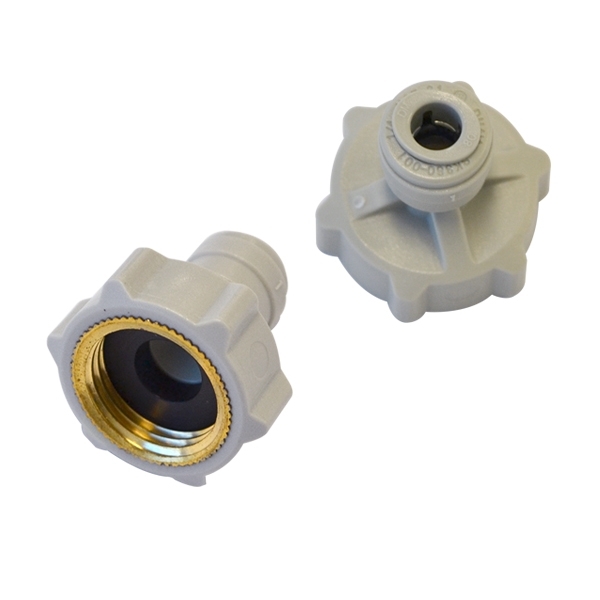

- 1X 3/4"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/2"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/4"-1/4" SPEED BALL VALVE

          Product Images

          Installation Instuctions

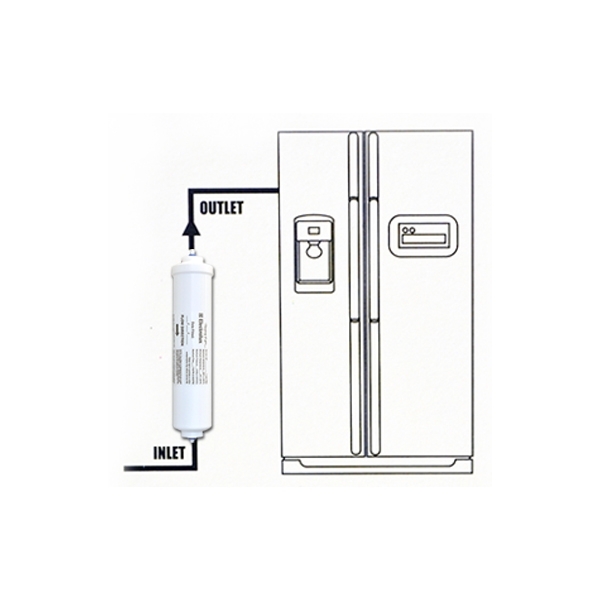

This is for external compatible water filters with 1/4" pushfit connections

You are buying Superior Quality compatible filters with push-fit connections.

Installation and replacement procedure for the Compatible External fridge water filter :

1. Find isolation valve which will be located somewhere on the water supply line to the fridge.

Turn it off and to depressurise the system draw a large glass of water from the water outlet at the fridge.

2. Have a bucket and towel ready as there will be a small spillage of water during this process.

Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.

3. Take the new filter, making sure the flow direction is correct and insert the inlet side only,

the line will go in approx 5 – 10mm and you will feel it hit home.

4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket.

This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge.

Turn on the water supply and run approx 2 litres through the system.

5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

As with all built-in refrigerator water filters, the compatible external fridge water filter does not remove Fluoride.

Note: The filter provides cleaner, fresher water ice.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water

          Compatible Filters & Fridges

External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges replaces : WFCB, WF2CB External in-line Fridge Filter, 1450970 & many other filter part numbers, will fit all brands of fridges that use an external in-line fridge filter.

Most fridges with internal filters can be converted over to use these filters.

Suitable for:
External inline refrigerator water filter is a replacement cartridge for side-by-side refrigerators that have externally fitted cartridges

[Suits the Following Fridge Models]

Electrolux model

: ESE607WA*05, ESE607WA*06, ESE6977SC, ESE6077SC

Westinghouse

: WSE6070SA, WSE6070PB*06, WSE6070SB*06, WSE607WB*06,
WSE6970PA, WSE6970SA, WSE6970WA, WSE6970WF, WSE6970SE, WSE6070SF, WSE6070PB, WSE6070WA, WSE6070WB, WSE6970SF

Electrolux fridge filter

: ESE6977S, ESE6977SE, ESE6077SC, ESE6077SE, ESE6077SF, ESE6977SF, ESE6077SG, ESE6977SG,

EHE5167SB

THIS  FILTER ALSO  SUIT  FOR   PART NUMBER  1456145K OR  00740560,1458682 THIS  IS  SAME AS  ORIGINAL  MANUFACTURED  PART
